WX55

The transport conveying system WX 55  is the most powerful kit among our range of pneumatic conveying systems, that can feed boilers with a thermal outlet more than 300 kW. The system is comprised of suction motor, fitted with side channel blowing engine and with control panel with soft-start or inverter, and of the interception pellet hopper with cyclone and self-cleaning filter.
It offers high efficiency and performance compared to the traditional conveying systems on the market and to the boilers with integrated solutions for pellet loading.
It can cover long distances from the storage room to the heating plant, up to 50 mt and guarantees rate flow up to 700 kg/h. Besides, the self-cleaning filter equipped with pulse air jet ensures maximum safety guarantee protecting the engine from impalpable dust, keeping it clean, thus it requires low maintenance.



Download the data sheet

Ideal solution to feed industrial heating plants

Automatic operation

Quick and easy installation PLUG & PLAY

Chrono time setting

Remote control per 3G/LAN

Equipment

  •  Electrical panel installed on the base of the motor
  • Self-cleaning cartridge filter
  • Min/max level sensor
  • Exhaust valve product
  • Hopper alimentation cable 20 mt
  • Vacuum breaker

Accessories WX55

VAY-V24 - Deviating valve y type, 4 ways vacuum line hose Ø 2”

VAY-V23 - Deviating valve type y, 3 ways vacuum line Ø50

VAY-V22 - Deviating valve y type, 2 ways vacuum line hose Ø 2”

VAY-V21 - Deviating valve y type, 1 way vacuum line hose Ø 2”

TUEX08 - Rilsan hose Ø8 extraflex for pneumatic connections

TUEX06 - Rilsan hose Ø6 extraflex for pneumatic connections

VAY-V4 - Deviating valve type y, 4 ways vacuum line Ø50

VAY-P4 - Deviating valve type y, 4 ways pellet line Ø50

VAY-V3 - Deviating valve type y, 3 ways vacuum line Ø50

VAY-P3 - Deviating valve type y, 3 ways pellet line Ø50

VAY-V1 - Deviating valve type y, 1 way vacuum line Ø50

VAY-P1 - Deviating valve type y, 1 way pellet line Ø50

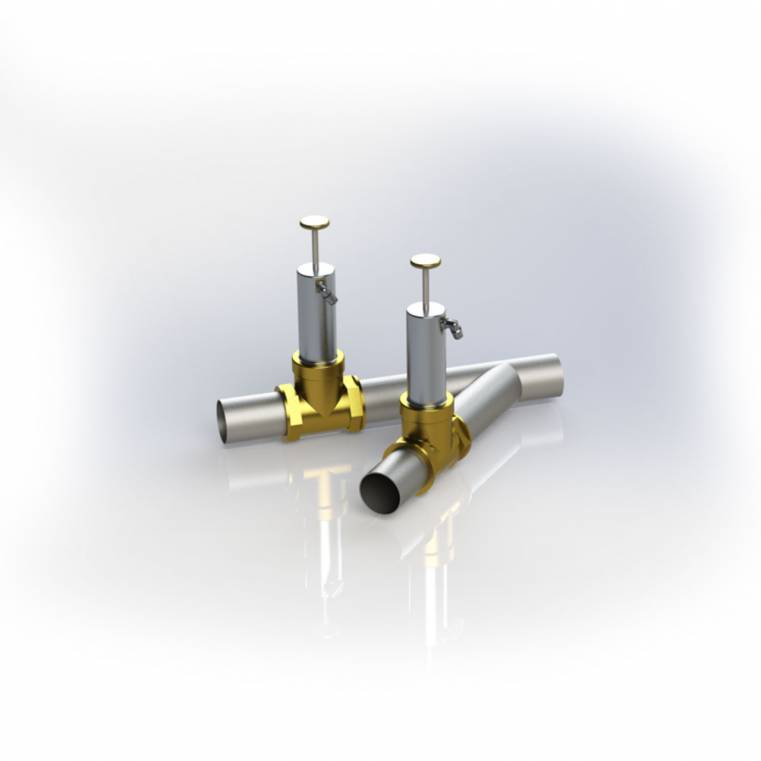

VAY-V - Deviating valve type y, 2 ways vacuum line Ø50

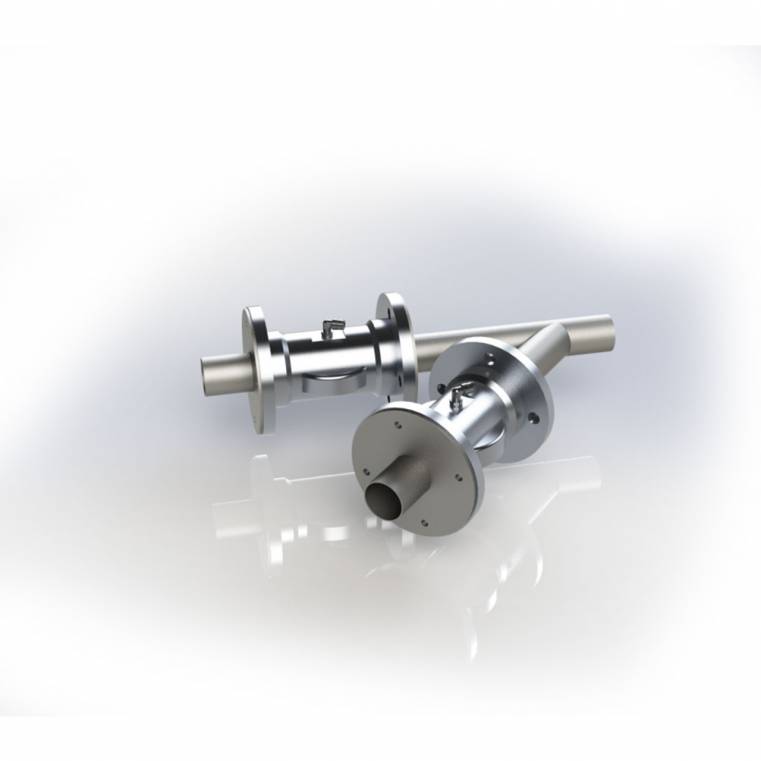

VAY-P - Deviating valve type y, 2 ways pellet line Ø50

VLS001 - Emptyingvalve pellet line Ø50

PR3669T Big bag emptying unit with bag-breaker, bottom discharge.

PR3670 - Suction probe for big-bag ( h 2.000 mm )

PR3669 - Suction probe for big-bag ( h 1.000 mm )

KTE3G - Kit for remote control via LAN/3G for suction motors WX11-15-52

EINE01 - Compressor with induction silencer 6 lt for model WX52

MG50E - Rubber sleeve for hose flex Ø50
